| Battery | Nominal Voltage (V) | Nominal Capacity C10 (AH)* | Dimensions(mm±2) | Weight (KG) |
||||
| Width | Depth | Height | Overall Height | |||||
|
FXH100-12S | 12 | 100Ah | 106 | 395 | 289.5 | 289.5 | 34 |
|
|
FXH155-12S | 12 | 155Ah | 124 | 556 | 289.5 | 295 | 51 |
|
|
FXH190-12S | 12 | 184Ah | 125 | 556 | 317 | 317 | 60.5 |
A Century Yuasa Batteries Solution

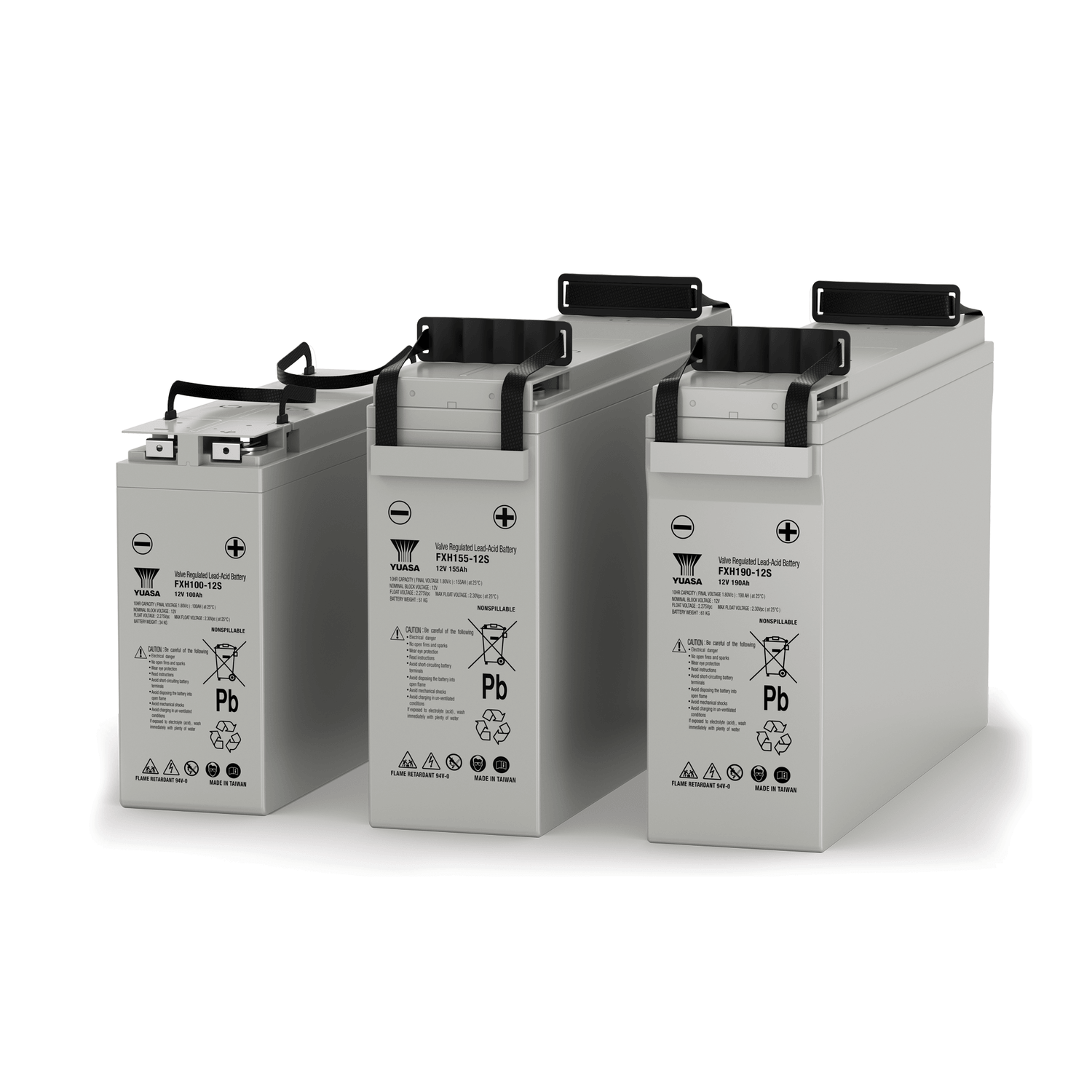

Yuasa FXH Range
The Yuasa FXH series is designed to provide the highest possible energy density, while offering a 10-year design life product. Incorporating valve regulated technology, Yuasa’s FXH is ideally suited for communication racks, with the front terminal connection providing quick and safe installation and maintenance.
Features:
- Front terminal construction
- Long service life: 10 years, @250℃
- Flame retardant battery lid and container (UL94 V-0)
-
01 Technical Specifications of Yuasa FXH Range
-
02 Technical Features
-
Technical Specifications of Yuasa FXH Range
Note
End voltage 1.80Vpc@25℃ : FXH100-12S, FXH155-12S
End voltage 1.85Vpc@25℃ : FXH190-12S
-
Technical Features
Technical Features
The Yuasa FXH series is designed to provide the highest possible energy density, while offering a 10-year design life product. Incorporating valve regulated technology, Yuasa’s FXH is ideally suited for communication racks, with the front terminal connection providing quick and safe installation and maintenance.
Features
- Front terminal construction
- Long service life: 10 years, @250℃
- Flame retardant battery lid and container (UL94 V-0)
